Ducky16

Ducky15

Model Ducky16 is designed for family recreation under sails. In the construction of this catamaran, the emphasis is on simplicity and speed of assembly, which makes it possible to use it as a weekend boat. The laconic construction of the catamaran provides assembly without tools in 30 minutes! A strong frame, balanced sailing arms and a large load capacity make it possible to use Ducky16 not only for walking, but also for short trips. With the management of the catamaran can handle one person.


Technical data of Ducky16

Length (m)4.8
Width (m)2.3
Height (m)6.4
Diameter of floats (m)0.54
Sails area (sq.m):
Jib
Main sail
Gennaker

2.3
7.3
10
Length \ Width of trampolines (m):
Front trampoline
Main trampoline

1.4 / 1.8
1.8 / 1.8
Number of persons1-4
Carrying capacity (kg)350
Weight (kg)65
Dimensions in packed condition (m):
Pack №1
Pack №2
Pack №3

1.85 х 0.25 х 0.25
1.85 х 0.4 х 0.25
0.8 х 0.4 х 0.3
Time of Assembly \ Disassembly (min)35 / 25
Recommended engine power (hp)3.3
Boat design category (Directive 94/25/EC, 2003/44/EC и 2013/53/EU)D

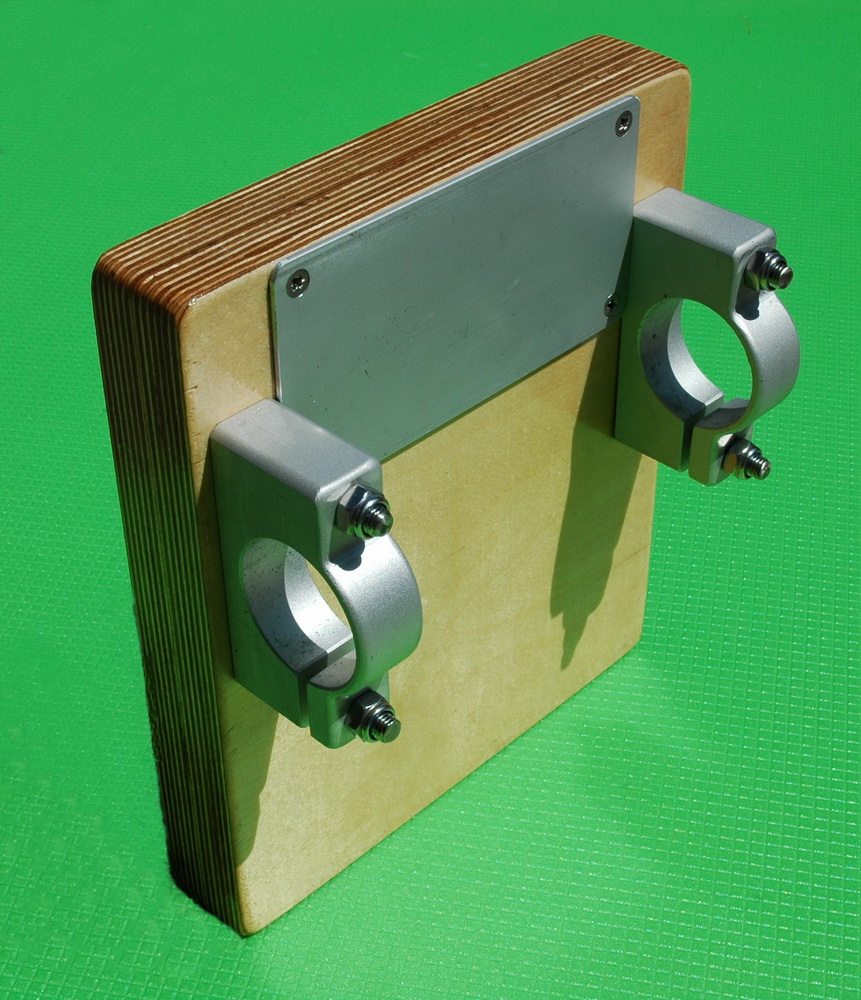

Additionally, it is possible to install an outboard engine with the power of 3.3 hp on the catamaran. For this purpose, a special transom board fastening to the stern beam is provided.

For those who have already mastered the management of the catamaran in the basic configuration, and wants to get even more thrills, there is an additional sail – Gennaker. This is an asymmetric spinnaker, which is carried on the full course. Gennaker will significantly increase the speed. With such a sail, in a fresh wind, the catamaran is able to go into the gliding mode!

In the production of our catamarans, we use only high-quality materials and components from the world’s leading manufacturers. The frame, mast and connectors are made of aluminum alloy, which has high strength and lightness, and also has high corrosion resistance in sea water. For additional protection against corrosion, all parts are anodized. Сenterboard and rudder of fiberglass reinforced plastic. Sail made of Dimension-Polyant dacron (170 g/m2) or mylar. All fastening elements are made of stainless steel. Hulls of two sections made out of Valmex, special PVC boat fabric (1000 g/sq.m).
